Scrapy-redis爬虫分布式爬取的分析和实现

Scrapy

Scrapy是一个比较好用的Python爬虫框架，你只需要编写几个组件就可以实现网页数据的爬取。但是当我们要爬取的页面非常多的时候，单个主机的处理能力就不能满足我们的需求了（无论是处理速度还是网络请求的并发数），这时候分布式爬虫的优势就显现出来。

而Scrapy-Redis则是一个基于Redis的Scrapy分布式组件。它利用Redis对用于爬取的请求(Requests)进行存储和调度(Schedule)，并对爬取产生的项目(items)存储以供后续处理使用。scrapy-redi重写了scrapy一些比较关键的代码，将scrapy变成一个可以在多个主机上同时运行的分布式爬虫。

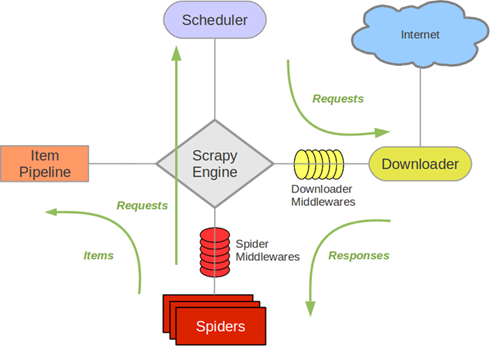

原生的Scrapy的架构是这样子的：

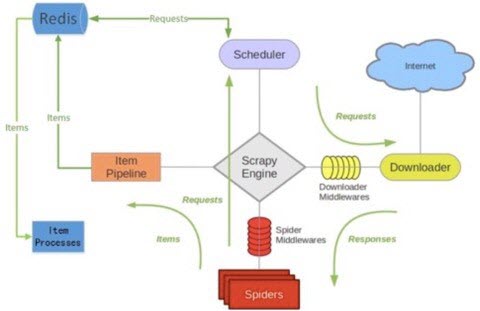

加上了Scrapy-Redis之后的架构变成了：

scrapy-redis的官方文档写的比较简洁，没有提及其运行原理，所以如果想全面的理解分布式爬虫的运行原理，还是得看scrapy-redis的源代码才行，不过scrapy-redis的源代码很少，也比较好懂，很快就能看完。

scrapy-redis工程的主体还是是redis和scrapy两个库，工程本身实现的东西不是很多，这个工程就像胶水一样，把这两个插件粘结了起来。

scrapy-redis提供了哪些组件？

scrapy-redis所实现的两种分布式：爬虫分布式以及item处理分布式。分别是由模块scheduler和模块pipelines实现。

connection.py

负责根据setting中配置实例化redis连接。被dupefilter和scheduler调用，总之涉及到redis存取的都要使用到这个模块。

import redis
import six
from scrapy.utils.misc import load_object
DEFAULT_REDIS_CLS = redis.StrictRedis
# Sane connection defaults.
DEFAULT_PARAMS = {
 'socket_timeout': 30,
 'socket_connect_timeout': 30,
 'retry_on_timeout': True,
}
# Shortcut maps 'setting name' -> 'parmater name'.
SETTINGS_PARAMS_MAP = {
 'REDIS_URL': 'url',
 'REDIS_HOST': 'host',
 'REDIS_PORT': 'port',
}
def get_redis_from_settings(settings):
 """Returns a redis client instance from given Scrapy settings object.
 This function uses ``get_client`` to instantiate the client and uses
 ``DEFAULT_PARAMS`` global as defaults values for the parameters. You can
 override them using the ``REDIS_PARAMS`` setting.
 Parameters
 ----------
 settings : Settings
  A scrapy settings object. See the supported settings below.
 Returns
 -------
 server
  Redis client instance.
 Other Parameters
 ----------------
 REDIS_URL : str, optional
  Server connection URL.
 REDIS_HOST : str, optional
  Server host.
 REDIS_PORT : str, optional
  Server port.
 REDIS_PARAMS : dict, optional
  Additional client parameters.
 """
 params = DEFAULT_PARAMS.copy()
 params.update(settings.getdict('REDIS_PARAMS'))
 # XXX: Deprecate REDIS_* settings.
 for source, dest in SETTINGS_PARAMS_MAP.items():
  val = settings.get(source)
  if val:
   params[dest] = val
 # Allow ``redis_cls`` to be a path to a class.
 if isinstance(params.get('redis_cls'), six.string_types):
  params['redis_cls'] = load_object(params['redis_cls'])
 return get_redis(**params)
# Backwards compatible alias.
from_settings = get_redis_from_settings
def get_redis(**kwargs):
 """Returns a redis client instance.
 Parameters
 ----------
 redis_cls : class, optional
  Defaults to ``redis.StrictRedis``.
 url : str, optional
  If given, ``redis_cls.from_url`` is used to instantiate the class.
 **kwargs
  Extra parameters to be passed to the ``redis_cls`` class.
 Returns
 -------
 server
  Redis client instance.
 """
 redis_cls = kwargs.pop('redis_cls', DEFAULT_REDIS_CLS)
 url = kwargs.pop('url', None)
 if url:
  return redis_cls.from_url(url, **kwargs)
 else:
  return redis_cls(**kwargs)

connect文件引入了redis模块，这个是redis-python库的接口，用于通过python访问redis数据库，可见，这个文件主要是实现连接redis数据库的功能（返回的是redis库的Redis对象或者StrictRedis对象，这俩都是可以直接用来进行数据操作的对象）。这些连接接口在其他文件中经常被用到。其中，我们可以看到，要想连接到redis数据库，和其他数据库差不多，需要一个ip地址、端口号、用户名密码（可选）和一个整形的数据库编号，同时我们还可以在scrapy工程的setting文件中配置套接字的超时时间、等待时间等。

dupefilter.py

负责执行requst的去重，实现的很有技巧性，使用redis的set数据结构。但是注意scheduler并不使用其中用于在这个模块中实现的dupefilter键做request的调度，而是使用queue.py模块中实现的queue。当request不重复时，将其存入到queue中，调度时将其弹出。

import logging
import time
from scrapy.dupefilters import BaseDupeFilter
from scrapy.utils.request import request_fingerprint
from .connection import get_redis_from_settings
DEFAULT_DUPEFILTER_KEY = "dupefilter:%(timestamp)s"
logger = logging.getLogger(__name__)
# TODO: Rename class to RedisDupeFilter.
class RFPDupeFilter(BaseDupeFilter):
 """Redis-based request duplicates filter.
 This class can also be used with default Scrapy's scheduler.
 """
 logger = logger
 def __init__(self, server, key, debug=False):
  """Initialize the duplicates filter.
  Parameters
  ----------
  server : redis.StrictRedis
   The redis server instance.
  key : str
   Redis key Where to store fingerprints.
  debug : bool, optional
   Whether to log filtered requests.
  """
  self.server = server
  self.key = key
  self.debug = debug
  self.logdupes = True
 @classmethod
 def from_settings(cls, settings):
  """Returns an instance from given settings.
  This uses by default the key ``dupefilter:<timestamp>``. When using the
  ``scrapy_redis.scheduler.Scheduler`` class, this method is not used as
  it needs to pass the spider name in the key.
  Parameters
  ----------
  settings : scrapy.settings.Settings
  Returns
  -------
  RFPDupeFilter
   A RFPDupeFilter instance.
  """
  server = get_redis_from_settings(settings)
  # XXX: This creates one-time key. needed to support to use this
  # class as standalone dupefilter with scrapy's default scheduler
  # if scrapy passes spider on open() method this wouldn't be needed
  # TODO: Use SCRAPY_JOB env as default and fallback to timestamp.
  key = DEFAULT_DUPEFILTER_KEY % {'timestamp': int(time.time())}
  debug = settings.getbool('DUPEFILTER_DEBUG')
  return cls(server, key=key, debug=debug)
 @classmethod
 def from_crawler(cls, crawler):
  """Returns instance from crawler.
  Parameters
  ----------
  crawler : scrapy.crawler.Crawler
  Returns
  -------
  RFPDupeFilter
   Instance of RFPDupeFilter.
  """
  return cls.from_settings(crawler.settings)
 def request_seen(self, request):
  """Returns True if request was already seen.
  Parameters
  ----------
  request : scrapy.http.Request
  Returns
  -------
  bool
  """
  fp = self.request_fingerprint(request)
  # This returns the number of values added, zero if already exists.
  added = self.server.sadd(self.key, fp)
  return added == 0
 def request_fingerprint(self, request):
  """Returns a fingerprint for a given request.
  Parameters
  ----------
  request : scrapy.http.Request
  Returns
  -------
  str
  """
  return request_fingerprint(request)
 def close(self, reason=''):
  """Delete data on close. Called by Scrapy's scheduler.
  Parameters
  ----------
  reason : str, optional
  """
  self.clear()
 def clear(self):
  """Clears fingerprints data."""
  self.server.delete(self.key)
 def log(self, request, spider):
  """Logs given request.
  Parameters
  ----------
  request : scrapy.http.Request
  spider : scrapy.spiders.Spider
  """
  if self.debug:
   msg = "Filtered duplicate request: %(request)s"
   self.logger.debug(msg, {'request': request}, extra={'spider': spider})
  elif self.lo
